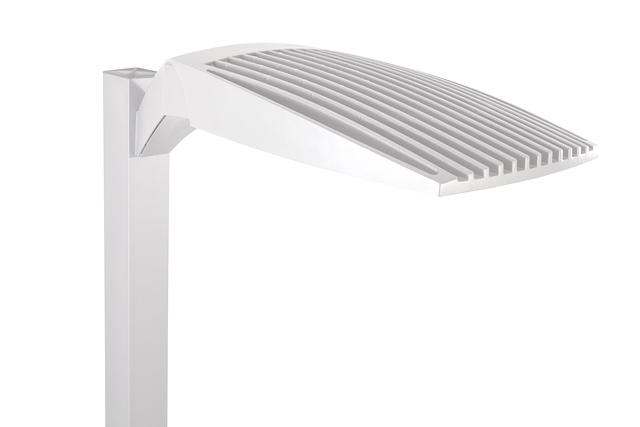

VLX Array LED Luminaire
The VLX Array LED Series offers clean, functional styling defined by its sleek low profile design and rugged construction. It combines LED performance and advanced LED thermal management technology and provides outdoor lighting that is both energy efficient and aesthetically pleasing.
Resources
Photometry
Key Features
- Die Cast aluminum heat sink
- Separate driver compartment
- Ten specification-grade optics
- 3000K CCT, 4000K CCT and 5000K CCT
- 54,000 – 76,000+ Lumen package
- 120- 277 UNVÂ Voltage Drivers, 347 & 480 Voltage Drivers
- 388 – 565 Wattage range
- Twist Lock Photocell and Receptacles
- Title 24 Compliant Motion Sensor
- 0-10V Dimming Driver
- Visionaire Wireless Controls
- Cut-off Shielding
CCT
- 3000K
- 4000K
- 5000K
Color / Finish
- Black
- Bronze
- Graphite
- Grey
- White
Controls Options
- Motion Sensor
- Photocell
Distribution
- Type 1
- Type 2
- Type 3
- Type 4
- Type 4 Automotive
- Type 4 Long
- Type 5 Long Round
- Type 5 Long Square
- Type 5 Short Round
Lamp Life
- 90000 hrs
Lamp Source
- LED
Materials
- Die-Cast Aluminum
Ratings & Compliance
- IP65
Voltage
- 120-277 V
- 347 V
- 480 V
- UNV
Warranty
- 10 yr
Watts
- 388 w
- 444 w
- 501 w
- 565 w
